Chair DOMEN allows multiple variants of performance in accordance with the requirements of the developer and the buyer (investor).
Lecture hall chair Domen
DOMEN is an anatomically designed lecture hall chair. Its metal base, wooden seat and back panel make it very robust and durable. It also offers writing shelves, which are made from high quality wood.
Features
- anatomically designed
- gravity-lift mechanisms without strings retract soundlessly and have longer service life
- a single chair can be replaced without having to disassemble a whole row.

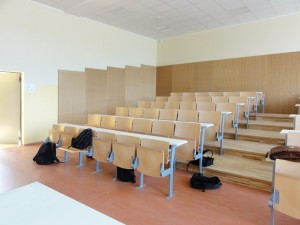

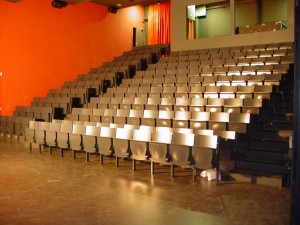

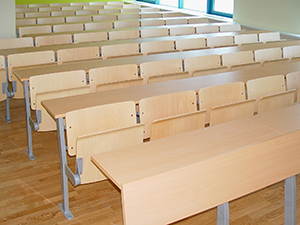

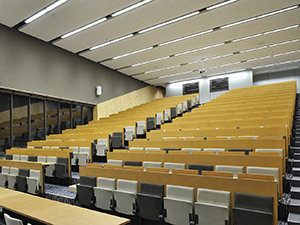

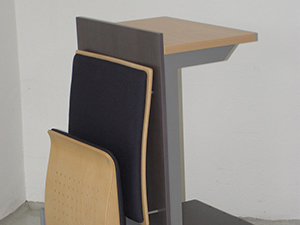

GALLERY
Technical Information
Materials
The chair consists of:
- metal base,
- wooden seat and back panel,
- writing shelves made of melamine chipboard chosen by the customer
- back rest made of naturally varnished 10mm thick beech plywood
Design
The two seat legs can be oval or rectangular. They are screwed to the floor through a mounting plate. In case of tiered floor, the chair is also screwed to the tier. A metal hook for hanging bags is welded to each chair base. The back rest is screwed to the metal base. The 33cm wide writing shelf is processed with 2mm ABS tape with same design. It is screwed to the metal base
Seat variant 1
Made from 12mm thick beech plywood. The fulcrum is made from supporting polyamide material.
Seat variant 2
Made from massive beach frame, which can be perforated with 8mm diameter perforation at an interval of 32 mm. The space between plywoods is filled with absorbent material. The gravity-lift is enabled by a counterweight fulcrum, made of nylon. The weight is built in the seat.
Certificate
This chair has SIST EN 12727: 2001, category IV. CERTIFICATE OF COMPLIANCE
Blueprint
